Productdetails:
Betalen & Verzenden Algemene voorwaarden:
|
| Nominaal droeg: | 7 1/16“--29 1/2“ | Druk: | 2000 ~15000psi |
|---|---|---|---|
| Het boren Programma: | Enig stadium | toepassing: | Oliebron |
| materiaal: | ANSI 4130 | Verpakking: | Houten geval |
| Markeren: | Wellhead Casing Tubing Drilling Spool,Oilfield Tubing Drilling Spool,ANSI 4130 Tubing Drilling Spool |
||

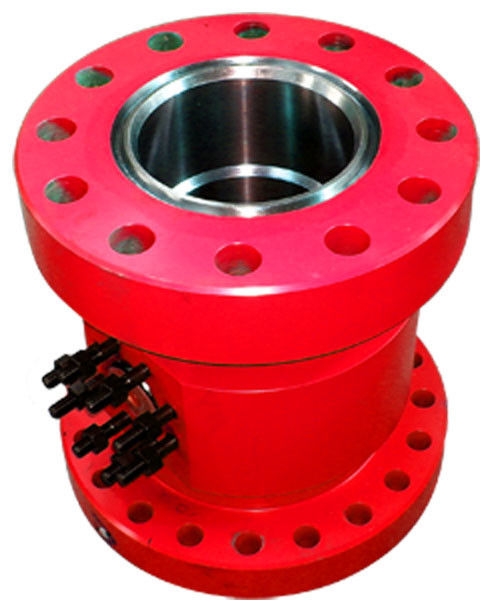

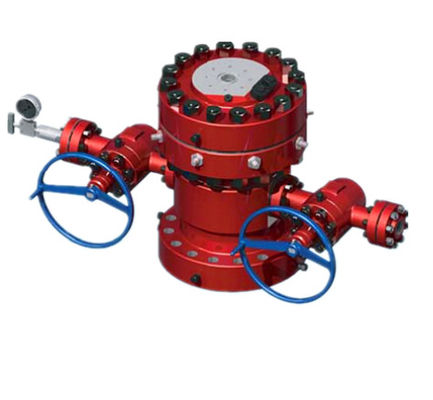

Surface Wellhead Casing and Tubing Drilling Spool for Oilfield
Product Overview
The casing spool has a straight bore bowl with 45°landing shoulder design which avoids damage to sealing areas by drilling tools and prevents test plug and bowl protector wedging problems when pressure is applied. Our Casing spools are normally furnished with threaded outlets and studded outlets and also can be manufactured by request. They can be used for single completions and model of dual completions.
Eternal company specializes on the manufacturing all sizes and pressure ratings used for oilfield applications. So many equipments have been applied on many oilfields all over the world. We can also design customizable ideal unions for reliable and consistent performance on their production system.
Design Advantages of Casing & Tubing Drilling Spool
Technical Data of Casing & Tubing Drilling Spool

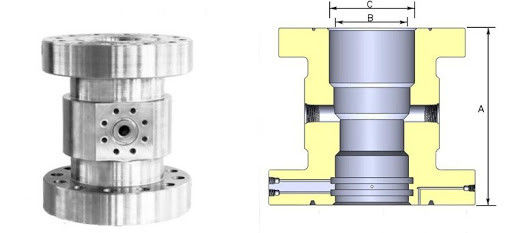

| Casing Spool | ||||||||||
| Bottom Flange size | Working pressure | Top Flange Size | Working Pressure | Outlet | A | B | C | D | Approx.Weight | |
| in | psi | in | psi | in | in | in | in | lbs | kg | |
| 11 | 3,000 | 11 | 3000 | 2-1/16"Stdd | 20-5/8 | 10-1/4 | 10-7/8 | 10 | 755 | 344 |
| 11 | 3,000 | 11 | 5000 | 2-1/16"Stdd | 22-1/4 | 12-3/4 | 10-7/8 | 10 | 835 | 380 |
| 11 | 5,000 | 11 | 5000 | 2-1/16"Stdd | 23-7/8 | 12-3/4 | 10-7/8 | 10 | 910 | 414 |
| 11 | 5,000 | 11 | 10000 | 1-13/16"Stdd | 24-3/4 | 13-5/8 | 10-7/8 | 10 | 1210 | 550 |
| 11 | 10,000 | 11 | 10000 | 1-13/16"Stdd | 25-5/8 | 14-1/2 | 10-7/8 | 10 | 1410 | 641 |
| 13-5/8 | 3,000 | 11 | 3000 | 2"LP | 22-5/8 | 10-1/4 | 10-7/8 | 10 | 680 | 310 |
| 13-5/8 | 3,000 | 11 | 3000 | 2-1/16"Stdd | 22-5/8 | 10-1/4 | 10-7/8 | 10 | 799 | 364 |
| 13-5/8 | 3,000 | 11 | 5000 | 2"LP | 25-1/4 | 12-3/4 | 10-7/8 | 10 | 1140 | 519 |
| 13-5/8 | 3,000 | 11 | 5000 | 2-1/16"Stdd | 25-1/4 | 12-3/4 | 10-7/8 | 10 | 1168 | 531 |
| 13-5/8 | 5,000 | 11 | 5000 | 2-1/16"Stdd | 25-1/8 | 12-3/4 | 10-7/8 | 10 | 1430 | 650 |
| 13-5/8 | 5,000 | 11 | 10000 | 1-13/16"s | 26 | 13-1/2 | 10-7/8 | 10 | 1631 | 742 |
| 21-1/4 | 2,000 | 13-5/8 | 3000 | 2-1/16"Stdd | 26-3/4 | 10-5/8 | 13-1/2 | 12-1/2 | 1755 | 798 |
| 20-3/4 | 3,000 | 13-5/8 | 3000 | 1-13/16"s | 27-5/8 | 10-5/8 | 13-1/2 | 12-1/2 | 1855 | 844 |
| 20-3/4 | 3,000 | 13-5/8 | 5000 | 2-1/16"Stdd | 28-5/8 | 12-1/8 | 13-1/2 | 12-3/8 | 1950 | 887 |
Our Service
1.We will keep track of each customer to get the feedback of product quality and service. And we will make an amendment according to your feedback.
2.If the product size is wrong, we will send the right one freely.
3.We guarantee the high quality. Please feel free to contact us if you found any damage. We will solve the problems ASAP.
4.We can provide product repair services.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
