API 6A PR1 Oilfield 15000PSI Gas Drilling Casing Head

API 6A PR1 Oilfield 15000PSI Gas Drilling Casing Head
API 6A PR1 Oilfield 15000PSI Gas Drilling Casing Head API 6A PR1 Oilfield 15000PSI Gas Drilling Casing Head API 6A PR1 Oilfield 15000PSI Gas Drilling Casing Head

Grote Afbeelding :  API 6A PR1 Oilfield 15000PSI Gas Drilling Casing Head

Productdetails:
Plaats van herkomst: Xi'an China
Merknaam: TR Solids Control
Certificering: API 6A, ISO 9001
Modelnummer: TRYGT
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1 PC
Prijs: onderhandelbaar
Verpakking Details: Pallet of houten geval
Levertijd: 20 dagen
Betalingscondities: L/C, D/A, D/P, T/T, Western Union
Levering vermogen: 80000 PCs per maand
Gedetailleerde productomschrijving
Grootte: 9“ - 21 1/4“ Gebruik: Olieveld
Druk: 10000PSI materiaal: koolstofstaal
toepassing: Energie & Mijnbouw certificaat: API 6A, ISO 9001
Markeren:

15000PSI Gas Drilling Casing Head

,

Oilfield Drilling Casing Head

,

PR1 Drill Spare Parts

High Performance 15000PSI Casing Head for Oil and Gas Drilling



Product Introduction

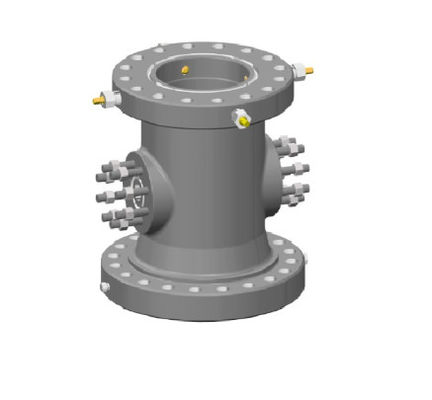

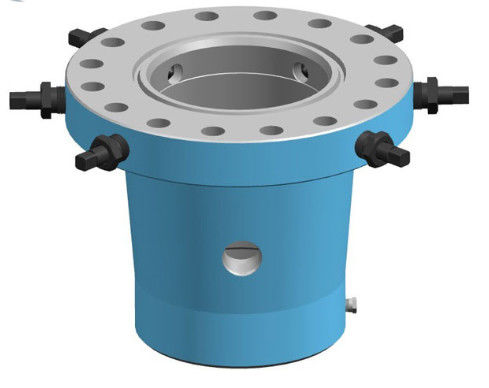

The casing head is a component connecting the casing and various wellhead devices. To support the gravity of the technical casing and reservoir casing, to seal the annular space between each casing, to provide a transition connection for the installation of upper wellhead devices such as bop, tubing head and tree, and through the two side openings in the casing head body, to perform the cementing, monitoring well sinking, and injection balancing operations.



Casing head spool is a simple metal flange welded or screwed onto the top of the conductor pipe (also known as drive-pipe) or the casing and forms part of the wellhead system for the well.



The casing head options are:


A. The lower part of the casing head can be the API standard round thread casing master connection or API standard partial trapeziform casing thread master connection, or the plug-in type casing connection or the slip type casing connection.
B. Welded support chassis can be provided.
C. There are two types of side outlet: pipe thread type and wire type. The threaded side port is machined with ri2/1 "female thread of valve changer.
D.W type casing hanger,W type casing hanger,WD type casing hanger.
E. Threaded or welded bottom connection casing head.



Advantages of Our Wellhead Casing Head



1. Straight-bore Design
45°shoulder design with high load capacity.
2. Side Outlet Connection Form
Pipeline thread side outlet
Threaded flange side outlet, design with VR plug.
3. Secondary Seal
Design with multi-structure secondary seals at bottom.
Installation can be performed on spot per different structure types, injection or non-injection can achieve seal.
4. Interchangeability of Casing Hanger
Casing hanger design with standard profile
Interchangeability between slip casing hanger and mandrel type casing hanger

5. Connection Forms between Casing Head and Surface Casing
Threaded bottom type
Welded bottom type
Slip bottom type



Main Specifications of TR Wellhead Casing Head



Casing Program 20"×133/8" ×95/8" ×7" or 51/2"
Flanged Outlet PFF35/80:R35
PFF70/65:BX153
Load Capacity Mixmum 5000KN
Hanger Specification 4",41/2",5",51/2",7"
Working Pressure 35MPa~70MPa
Performance Requirement Grade PR1
Product Specification Grade PSL1-3
Temperature P·U(-29~121)
Material Class AA~FF



API 6A PR1 Oilfield 15000PSI Gas Drilling Casing Head 0



Xi'An TianRui Petroleum Machinery Equipment Company was founded in 2010, Xi'an city of China. Oil machinery is our main products, the leading products include solid control equipment, pumping unit, subsurface sucker rod pump, wellhead (Christmas Tree), pressure vessels, drilling downhole products and cementing accessories. We had attained ISO 9001 in 1998 and API Certificates in 2002 .



We have certificates of API 5CT,6A,10D,11AX,11E, ISO 14001 and 9001. With 10 years exporting experience, we have exported to more than 30 countries such as America,Canada,Russia,Venezuela,Columbia,Thailand,Indonesia ,UAE,Saudi Arabia,Kazakhstan etc.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
