| Grootte: | 3 3/4 „(95.3mm) ~26“ (660.4mm) | Kleur: | Wit rood, |
|---|---|---|---|
| Middel: | water/olie/gas | Werkdruk: | 2000-20000 psi |
| Verbinding: | Flens | betaling: | L/C, T/T |
| Markeren: | 5000psi Drilling Casing Hanger,660.4mm Drilling Casing Hanger,Oilfield Casing Hanger |
||

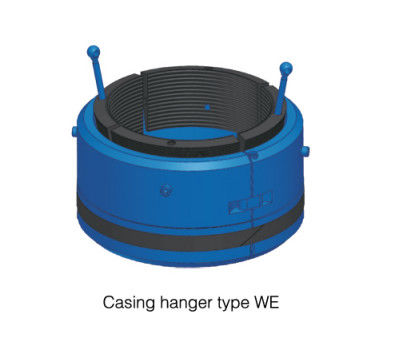

WE Type Casing Hanger Used in High Corrosion Condition
Product Descrption
The casing hanger is placed in the cone seat of the lowest part of casing head or intermediate casing head to hang the following smaller casing string and make a seal for the hanging casing and casing head cone seat. It should be able to withstand the weight of the casing hanging. Therefore, the tensile load, the weight load from the pressure in the well casing, and radial load of the conical shoulder are the main loads of the hanger.
Our products could match the following brand:
FMC, CAMERON, CONTROL FLOW, DKG, DRILLQUIP, CE, VECTOGREY, WEATHERFORD, WEIRSEABOARD,WOOD GROUP, WOM, STREAM FLO. EXPRO, MI SWACO, T3.
Features of Our Wellhead Casing Hanger
Basic Parameters of Our Wellhead Casing Hanger
Technical Data of TR Wellhead Casing Hanger
| Rated operating pressure psi(MPa) |
Nominal bore diameter in(mm) |
Bypass bore diameter in(mm) |
Outer diameter of the casing for the hangerin(mm) |
| 2000(13.8) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 3000(20.7) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 5000(34.5) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 10000(69.0) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 15000(103.5) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 20000(138.0) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
Xi'an TianRui Petroleum Machinery Equipment Company provides many kinds of wellhead equipment, down hole tools ,fishing tools and drilling tools,such as fishing spear ,Rotary Kelly,Drill pipe,casing head, tubing head, x-mas tree and some parts. We can provide API standard products. We not only have standard design wellhead products, but also provide products according to customer's requirements.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
